Auatralia Shutter Door Biting Machine Auxiliary Equipment

Brand Name : YBT

Model Number : BT254103

Certification : CE,ISO,SGS

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 10 sets Per Month

Delivery Time : 45-60 days

Packaging Details : Standard export packing with each machine tied and protected in container

Name : Shutter Door Biting Machine

Material : Carbon Steel, Stainless Steel, , Alimnium

Power : Hydraulic, CNC, manual, Other

Warranty : 12 Months

Extra services : Machining, End Forming, Welding / Brazing, bending / folding, Slotting & Notching

Automation : Automatic, manual, semi-auto

Contact Now

Auatralia Shutter Door Biting Machine Auxiliary Equipment Of Roll Form Machine

Roll shutter door roll forming machine is customized by YBT Machinery company. We design and produce many kinds of roll shutter door roll forming machine for many clients. We understand shutter door very well. And we also know the shutter door roll forming machine market very well. When we get the sample of shutter door panel, we can get price timely.

Business should be honest, then we can help you to buy high quality shutter door roll forming machine with acceptable price.

Details of Shutter Door Roll Forming Machine

Suitable raw material	PPGI/PPGL/GI/GL Steel Coils
Thickness of coil sheet	0.3-0.8mm
Feeding Coil width	156mm
Effective width	115mm
Under frame	600H-beam
Diameter of Soild shaft	50mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway
Roller	High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment,hard chrome coated 0.05-0.07mm
Thickness of middle plate	Memorical archway
Forming stations	12
Drive type	By chain(1.0 inch) link bearing model 6210
Power of main motor	5.5kw with Cycloidal reducer, Lichao, Shanghai
Power of pump station	4kw, Lichao, Shanghai
Forming speed	About 15-20m/min
Hydraulic cutting	Controlled by PLC
PLC	DELTA, TAIWAN / Mitsubishi, Japan
Material of cutting blade	Cr12Mov, quenching 58-62°C
Frequency converter	It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrialstandard ±3mm).

Machine Detailed Parameters:

1	Machine structure	Wire-electrode cutting structure
2	Total power	Motor power-7.5kw Hydraulic power-4kw
3	Roller stations	About 14 stations + one station for rectify (according the final design)
4	Productivity	0-15m/min
5	Drive system	By 1.2 inch single chain
6	Diameter of shaft	¢65mm solid shaft
7	Voltage	380V 50Hz 3phases (Customized)
8	Container need	1x20GP container

Auatralia Shutter Door Biting Machine ,Design according to customers requirement

Auatralia Shutter Door Biting Machine Auxiliary Equipment

Product Tags:

door frame making machine

shutter manufacturing equipment

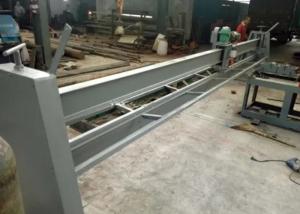

Auatralia Shutter Door Biting Machine Auxiliary Equipment Images
